AHN ACC Spiral | 2019-2020 | Iontank
["Software","Design","Electronics","Fabrication"] - Description

Finished Sculpture, Courtesy of Iontank.
Finished Sculpture, Courtesy of Iontank.


Finished Sculpture, Courtesy of Iontank.
Finished Sculpture, Courtesy of Iontank.


PCB Designs, Courtesy of Iontank.
PCB Designs, Courtesy of Iontank.


At home testing, Courtesy of COVID-19.
At home testing, Courtesy of COVID-19.


Installed PCBs, Courtesy of Iontank.
Installed PCBs, Courtesy of Iontank.

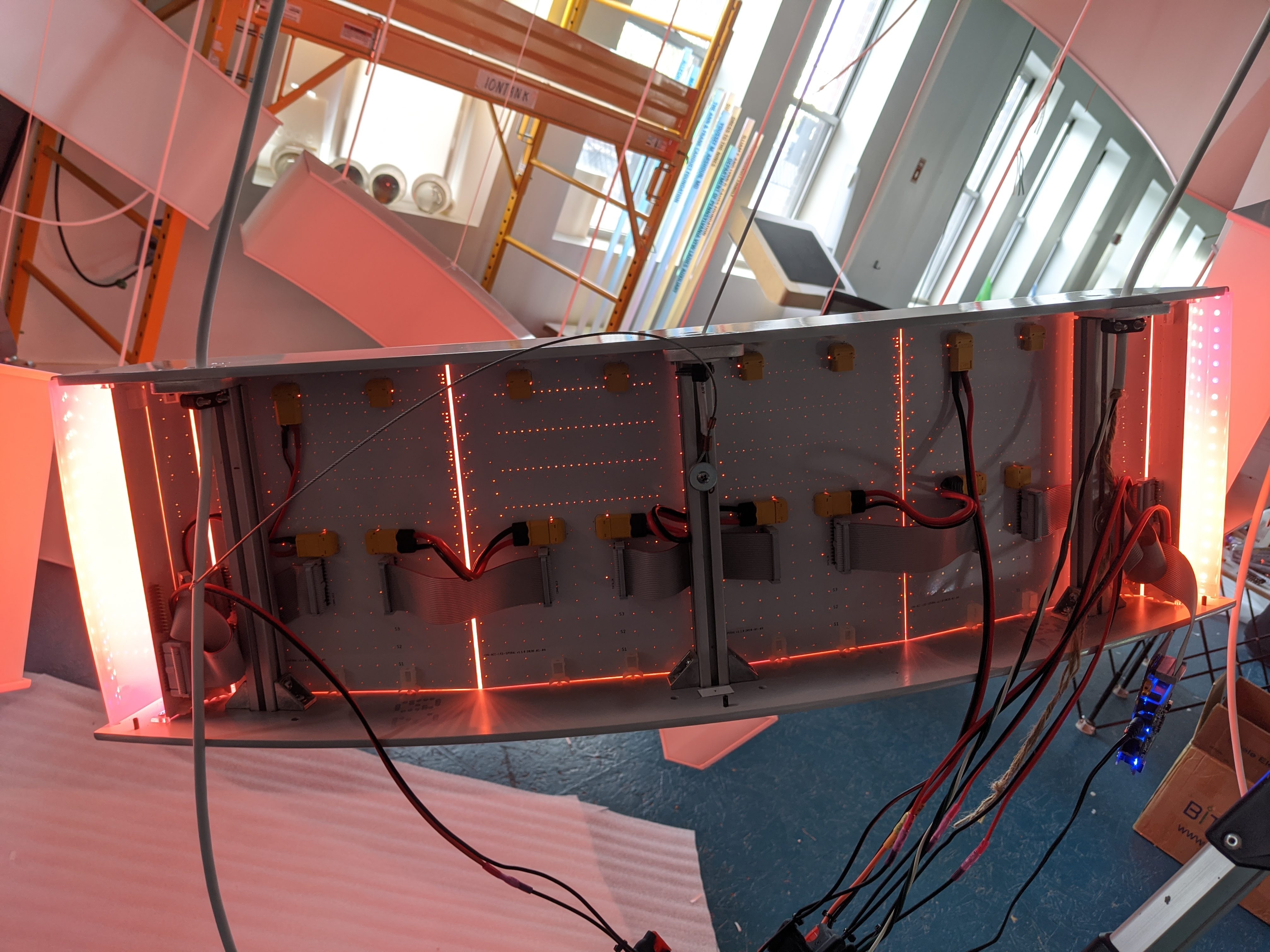

First test segment lit up, Courtesy of Iontank.
First test segment lit up, Courtesy of Iontank.


Testing of the spiral, Courtesy of Iontank.
Testing of the spiral, Courtesy of Iontank.


Testing animations, Courtesy of Iontank.
Testing animations, Courtesy of Iontank.


Testing patterns, Courtesy of Iontank.
Testing patterns, Courtesy of Iontank.


Description | Official Site: AHN ACC Spiral by Iontank

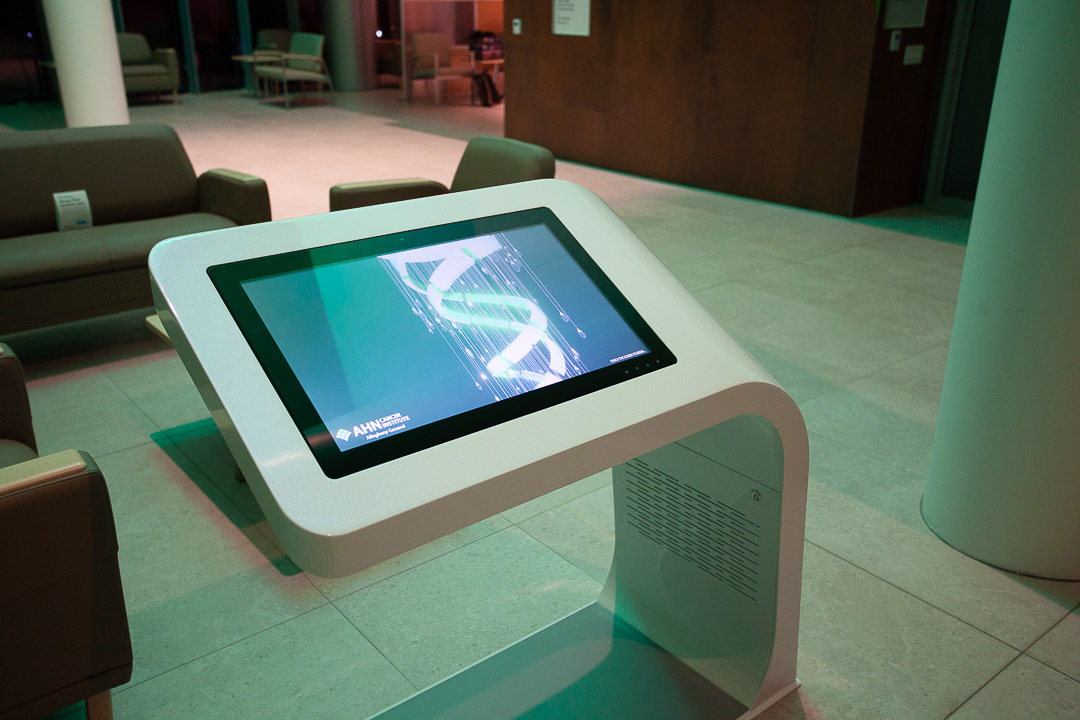

Project Press Release: Perhaps the most unique feature is the dramatic sculpture representing the DNA helix in the center’s lobby. Weighing more than 1,000 pounds, the steel, aluminum and glass sculpture was designed by Iontank, a Pittsburgh-based studio that creates interactive installations. Patients and visitors can use a kiosk to create animations that can be added to the rotation of content on the sculpture. This project is comprised of 30 aluminum segments, each with a dedicated power supply, controller, and lighting boards; and over 100 glass pendants. Each of these components was designed and fabricated at Iontank. The entire sculpture is controlled by a 3D model of itself running inside of Unity. This interface allows the user to explore the piece, while learning about the treatments, and care available to them.
