Google Tokyo Pendants | Iontank

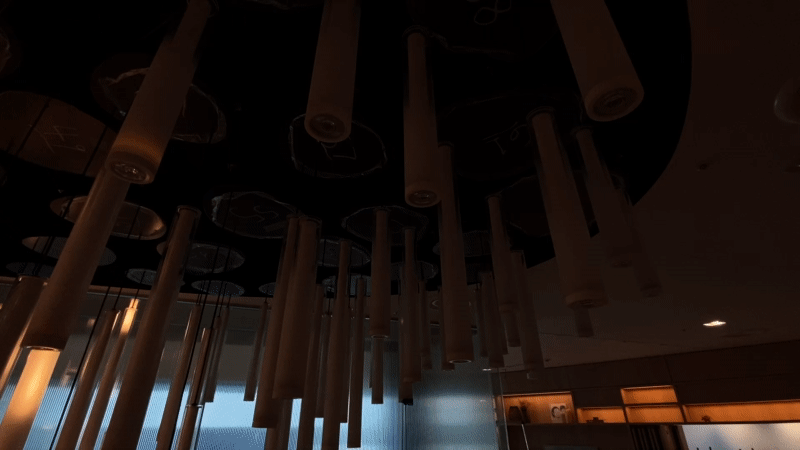

Installed Pendant Collection | Iontank
Pendants hung in clusters of 3 | Iontank
100+ Pendants | Iontank
Pendant control board | Iontank
Board programmer and tester | Iontank
3D PCB Base | Iontank
LED sticks | Iontank
Initial prototype | Iontank
Testing locally | Iontank
Animation testing | Iontank

The pendants were a complicated 3D lighting PCB design. They combined multiple board designs connected at different angles and hung off one cable. They use two different types of LED, a built in LED driver, boost regulator, and AVR Microcontroller to provide full animation and color temperature control over I2C. They were driven by a collection of Beaglebone Black’s running custom software which used the hardware I2C interfaces to translate websocket messages to I2C commands. They were installed in a constellation of over 100 with lengths of 16, 24, and 36 inches.
